Some lines in scope widget go under a wrong group #888

@ktakiman

Description

@ktakiman

Debug adapter definition and debug configuration

I can see smilar issues happening in at least three debug adapters I tried with three different languages.
So it appears that this is not debug-adapter specific issue.

Installed the adapters via Mason

-- cpp
dap.adapters.cppdbg = {
  type = 'executable',
  command = 'OpenDebugAD7',
  id = 'cppdbg',
}

dap.configurations.cpp = {
  {
    name = 'Launch file',
    type = 'cppdbg',
    request = 'launch',
    program = function()
      return vim.fn.input('Path to executable: ', vim.fn.getcwd() .. '/', 'file')
    end,
    cwd = '${workspaceFolder}',
    stopAtEntry = true,
  },
}

-- javascript
dap.adapters.node2 = {
  type = 'executable',
  command = 'node-debug2-adapter',
  args = {},
}

dap.configurations.javascript = {
  {
    name = 'Launch',
    type = 'node2',
    request = 'attach',
    program = '${file}',
    cwd = vim.fn.getcwd(),
    sourceMaps = true,
    protocol = 'inspector',
    console = 'integratedTerminal',
  },
}

-- python
dap.adapters.python = {
  type = 'executable',
  command = 'debugpy-adapter',
  args = {},
}

dap.configurations.python = {
  {
    type = 'python', -- the type here established the link to the adapter definition: `dap.adapters.python`
    request = 'launch',
    name = 'Launch file',

    program = '${file}', -- This configuration will launch the current file if used.
  },
}

Debug adapter version

cpptools: 1.14.3, debugpy: 1.6.6, vscode-node-debug2: 1.43.0

Steps to Reproduce

  1. set a break point, start debug session
  2. open scope widget

c++

python

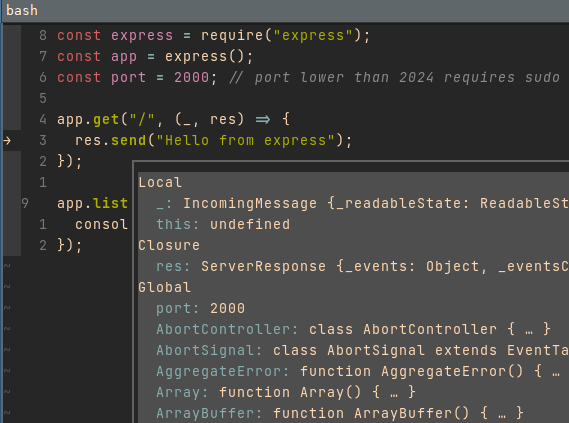

javascript (nodejs, express app)

(on Chrome Dev Tool)

Expected Result

In the example above:
c++
argc goes under Locals

python
y goes under Locals

javascript
res: ServerResponse { ... goes under Local
port: 2000 goes under Closure

Actual Result

In the example above:
c++
argc goes under under Globals

python
y goes under Globals

javascript
res: ServerResponse { ... is under Closure
port: 2000 goes under Globals
