fix(cargo-wdk): use --message-format=json-render-diagnostics in the build command to render compiler errors instead of the plain json option (#645)

Fixes #613

## Problem

When `cargo wdk build` encounters a compilation error, the error output
is hard to debug:

1. JSON wall — `--message-format=json` sends even the compiler
diagnostics as JSON to `stdout` instead of redirecting it to `stderr`.
So, compiler errors are not directly visible instead they are buried
deep in the output json. This is affecting test outputs because in case
of failures, the errors cannot be seen easily in the `json` output.
2. Redundant error content — `BuildTaskError::CargoBuild` wraps the full
`CommandError` (containing `stdout` JSON), even though the user may have
already seen the real compiler errors on `stderr` in real time.

## Fixes

The following changes fix the above problems:

1. Switch to `--message-format=json-render-diagnostics`
This option instructs cargo to render diagnostics from `rustc` directly
to `stderr` instead of putting it in the `json` output.
stdout: only machine-parseable JSON (artifacts, build-finished) — no
diagnostic messages
stderr: human-readable compiler errors and warnings, rendered by Cargo
(visible to the user in real time since stderr is inherited)

2. Omit `stdout` from `CommandError::CommandFailed` before returning
from `BuildTask`:
When cargo build fails, `BuildTask::run()` now maps the error to a new
instance of `CommandFailed` but with the `stdout` field set to
`String::new()` to avoid printing machine-readable (`json`) output on
the screen.

## Before

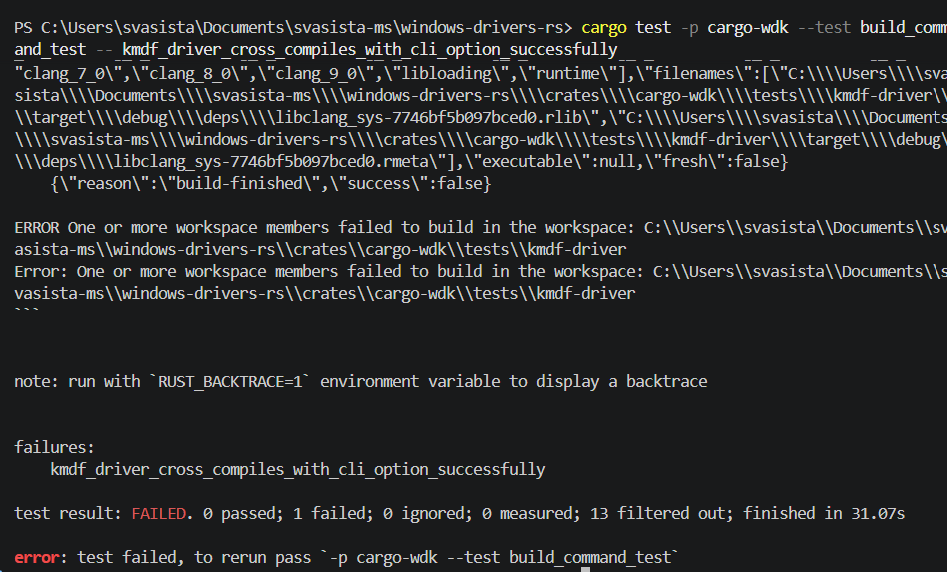

Running `kmdf_driver_cross_compiles_with_cli_option_successfully` test
after removing `aarch64-pc-windows-msvc` target:

<img width="947" height="572" alt="image"
src="https://github.com/user-attachments/assets/efb391d3-02e8-47fd-907e-91ffe5c1d4ba"
/>

_____

Compiler diagnostics not printed to `stderr`, instead it is buried in
the json output when `cargo wdk build` fails:

<img width="1547" height="822" alt="image"
src="https://github.com/user-attachments/assets/4a0cf5c0-a9d4-4a8c-be63-c1237d6ed835"
/>

_____

Output seen when tests fail due to compilation errors:

<img width="1936" height="1162" alt="image"
src="https://github.com/user-attachments/assets/ac4a5e53-5a95-483d-898c-0e751e790c36"
/>


## After

Running `kmdf_driver_cross_compiles_with_cli_option_successfully` test
after removing `aarch64-pc-windows-msvc` target:

<img width="1344" height="824" alt="image"
src="https://github.com/user-attachments/assets/f95f94a9-9076-46e3-a706-c07c7ca95b65"
/>

_____

Compiler diagnostics available on terminal:

<img width="1028" height="576" alt="image"
src="https://github.com/user-attachments/assets/39d6ba3f-5b6f-4fdb-bbb9-0b39c21874be"
/>

_____

Output seen when tests fail due to compilation errors:
<img width="1867" height="1231" alt="image"
src="https://github.com/user-attachments/assets/b282efcd-c748-4129-b2c1-4f5c6b297900"
/>

---------

Co-authored-by: Copilot <copilot@github.com>

Author: svasista-ms

crates/cargo-wdk/src/actions/build/build_task.rs

@@ -17,6 +17,7 @@ use wdk_build::CpuArchitecture;
 use crate::providers::exec::CommandExec;
 use crate::{
     actions::{Profile, build::error::BuildTaskError, to_target_triple},
+    providers::error::CommandError,
     trace,
 };

@@ -91,7 +92,7 @@ impl<'a> BuildTask<'a> {
     ) -> Result<impl Iterator<Item = Result<Message, std::io::Error>>, BuildTaskError> {
         debug!("Running cargo build");
         let mut args = vec!["build".to_string()];
-        args.push("--message-format=json".to_string());
+        args.push("--message-format=json-render-diagnostics".to_string());
         args.push("-p".to_string());
         args.push(self.package_name.to_string());
         if let Some(path) = self.manifest_path.to_str() {
@@ -120,7 +121,16 @@ impl<'a> BuildTask<'a> {
         // is respected
         let output = self
             .command_exec
-            .run("cargo", &args, None, Some(self.working_dir))?;
+            .run("cargo", &args, None, Some(self.working_dir))
+            .map_err(|mut err| {
+                // Drop stdout from CommandFailed so the noisy
+                // --message-format=json-render-diagnostics output isn't bubbled up
+                // in the wrapped error.
+                if let CommandError::CommandFailed { stdout, .. } = &mut err {
+                    stdout.clear();
+                }
+                BuildTaskError::CargoBuild(err)
+            })?;

         debug!("cargo build done");
         Ok(Message::parse_stream(std::io::Cursor::new(output.stdout)))
@@ -205,7 +215,7 @@ mod tests {
         let verbosity = clap_verbosity_flag::Verbosity::default();
         let expected_args = vec![
             "build".to_string(),
-            "--message-format=json".to_string(),
+            "--message-format=json-render-diagnostics".to_string(),
             "-p".to_string(),
             "my-driver".to_string(),
             "--manifest-path".to_string(),
@@ -266,7 +276,7 @@ mod tests {
     }

     #[test]
-    fn run_returns_error_when_cargo_command_fails() {
+    fn run_returns_command_failed_error_with_empty_stdout_when_cargo_build_exits_nonzero() {
         let working_dir = PathBuf::from("C:/abs/driver");
         let mut mock = MockCommandExec::new();
         mock.expect_run().return_once(|_, _, _, _| {
@@ -292,22 +302,58 @@ mod tests {
         );

         let err = task.run().err().expect("expected cargo failure");
-        let BuildTaskError::CargoBuild(command_error) = err else {
-            panic!("expected cargo build error");
+        let BuildTaskError::CargoBuild(CommandError::CommandFailed {
+            command,
+            args,
+            stdout,
+        }) = err
+        else {
+            panic!("expected CargoBuild(CommandFailed) error, got: {err:?}");
         };
-        match command_error {
-            CommandError::CommandFailed {
-                command,
-                args,
-                stdout,
-            } => {
-                assert_eq!(command, "cargo");
-                assert_eq!(args, vec!["build".to_string()]);
-                assert_eq!(stdout, "error");
-            }
-            CommandError::IoError(_, _, err) => {
-                panic!("expected CommandFailed, got IoError: {err}")
-            }
-        }
+        assert_eq!(command, "cargo");
+        assert!(
+            args.contains(&"build".to_string()),
+            "expected args to contain 'build', got: {args:?}"
+        );
+        assert!(
+            stdout.is_empty(),
+            "expected stdout to be omitted, got: {stdout}"
+        );
+    }
+
+    #[test]
+    fn run_returns_io_error_when_cargo_build_command_invocation_fails() {
+        let working_dir = PathBuf::from("C:/abs/driver");
+        let mut mock = MockCommandExec::new();
+        mock.expect_run().return_once(|_, _, _, _| {
+            Err(CommandError::from_io_error(
+                "cargo",
+                &["build"],
+                std::io::Error::new(std::io::ErrorKind::NotFound, "program not found"),
+            ))
+        });
+
+        let task = BuildTask::new(
+            "my-driver",
+            &working_dir,
+            None,
+            None,
+            clap_verbosity_flag::Verbosity::default(),
+            &mock,
+        );
+
+        let err = task
+            .run()
+            .err()
+            .expect("expected command invocation failure");
+        let BuildTaskError::CargoBuild(CommandError::IoError(command, args, io_err)) = err else {
+            panic!("expected CargoBuild(IoError) error, got: {err:?}");
+        };
+        assert_eq!(command, "cargo");
+        assert!(
+            args.contains(&"build".to_string()),
+            "expected args to contain 'build', got: {args:?}"
+        );
+        assert_eq!(io_err.kind(), std::io::ErrorKind::NotFound);
     }
 }

crates/cargo-wdk/src/actions/build/error.rs

@@ -49,7 +49,7 @@ pub enum BuildTaskError {
     #[error("Empty manifest path found error")]
     EmptyManifestPath,
     #[error("Error running cargo build command")]
-    CargoBuild(#[from] CommandError),
+    CargoBuild(#[source] CommandError),
     #[error(transparent)]
     FileIo(#[from] FileError),
 }

crates/cargo-wdk/src/actions/build/tests.rs

@@ -1935,7 +1935,7 @@ impl TestBuildAction {
             .to_string();
         let mut expected_cargo_build_args: Vec<String> = vec![
             "build",
-            "--message-format=json",
+            "--message-format=json-render-diagnostics",
             "-p",
             &driver_name,
             "--manifest-path",
