Implement Series.plot.kde #767
Merged
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Codecov Report
@@ Coverage Diff @@
## master #767 +/- ##
==========================================
- Coverage 93.9% 93.83% -0.07%
==========================================
Files 32 32
Lines 5691 5744 +53
==========================================
+ Hits 5344 5390 +46
- Misses 347 354 +7
Continue to review full report at Codecov.
|
HyukjinKwon
force-pushed
the
impl_series_kde
branch
from
6c34c7a to
b70e59e
Compare
HyukjinKwon
force-pushed
the
impl_series_kde
branch
from
ab5e7cf to
12bf276
Compare

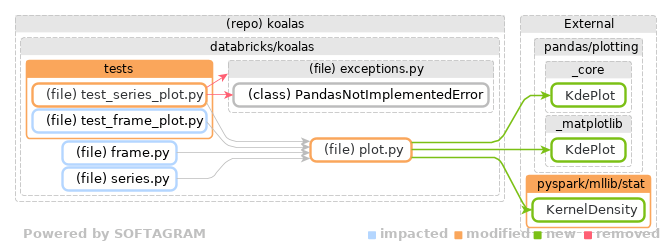

Softagram Impact Report for pull/767 (head commit: 12bf276)⭐ Change Overview
📄 Full report
Impact Report explained. Give feedback on this report to [email protected] |
Member
Author
|
Let me merge this to move forward. |
ueshin
reviewed
Sep 25, 2019
|
|
||
| pax = pdf['a'].plot('kde', bw_method=0.3) | ||
| kax = kdf['a'].plot('kde', bw_method=0.3) | ||
| self.compare_plots(pax, kax) |
Collaborator
There was a problem hiding this comment.
@HyukjinKwon Why does this still work even though the values are slightly different?
HyukjinKwon
pushed a commit
that referenced
this pull request
Sep 28, 2019
This PR implements kde in DataFrame. It reuses Series' implementation. at #767 like Series's kde plot, Since DataFrame's also uses MLlib's KernelDensity API to calculate KDE , so slightly different from pandas but seems good enough either: <img width="884" alt="스크린샷 2019-09-17 오후 2 24 34" src="https://user-images.githubusercontent.com/44108233/65013645-e3933100-d956-11e9-9166-be6d534046bd.png"> <img width="882" alt="스크린샷 2019-09-17 오후 2 25 18" src="https://user-images.githubusercontent.com/44108233/65013684-ff96d280-d956-11e9-8714-6c860c4e2c13.png"> And also kde is an alias of 'density', you can get exactly same result when you use 'density' rather than 'kde' like below: <img width="886" alt="스크린샷 2019-09-17 오후 2 27 30" src="https://user-images.githubusercontent.com/44108233/65013769-66b48700-d957-11e9-84f0-5b5989ed2d49.png"> <img width="882" alt="스크린샷 2019-09-17 오후 2 27 09" src="https://user-images.githubusercontent.com/44108233/65013770-67e5b400-d957-11e9-875c-0fd73b32fa5f.png"> **Multiple columns examples:** <img width="819" alt="스크린샷 2019-09-17 오후 2 55 35" src="https://user-images.githubusercontent.com/44108233/65015007-45ee3080-d95b-11e9-9c31-a4b85631e404.png"> and for each row as Series.plot.kde looks same like below: <img width="739" alt="스크린샷 2019-09-17 오후 2 57 57" src="https://user-images.githubusercontent.com/44108233/65015172-b9903d80-d95b-11e9-8245-8b47190c38b6.png">
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
5 participants
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
This PR takes over #710
KDE, unlike other plots like line or area, it needs to calculates values via Spark so that we can compute it in a distributed manner.
This PR uses MLlib's KernelDensity API to calculate KDE. Since Spark only support scalar bandwidth, unlike SciPy that pandas' uses, Koalas will currently only support fixed scalar bandwidth only.

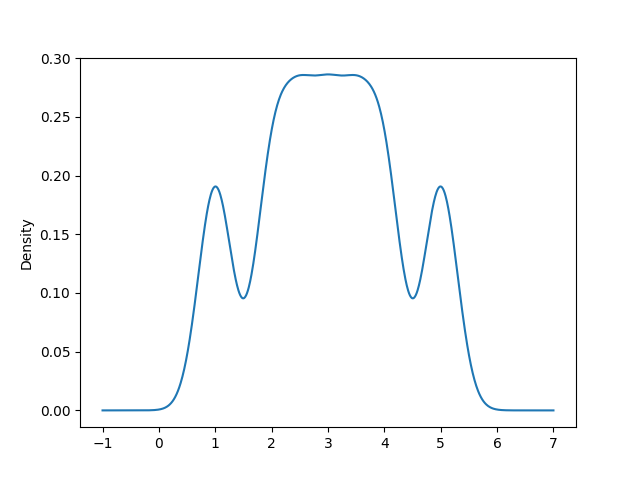

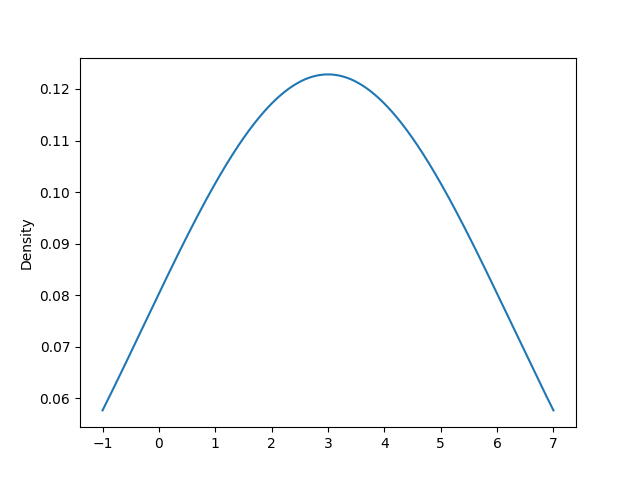

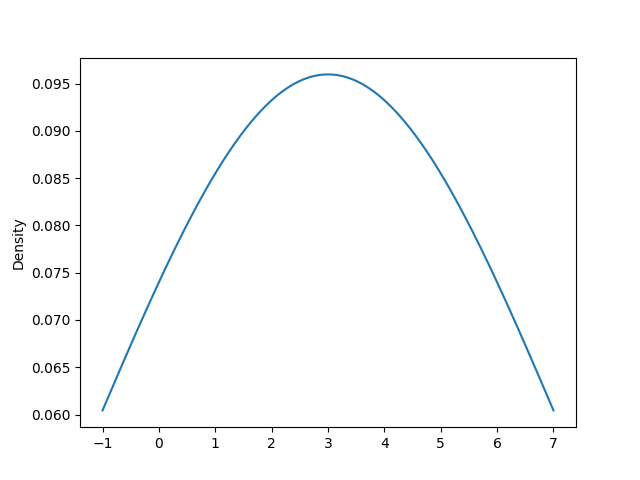

Implementation is different so the values are slightly different but seems good enough:
