Fairmotion Action Order Queueing and Perpetual Motion Generator

[JuanTheEngineer]

Motivation and Context

So far, our Fairmotion character can follow a given path using a transient motion cycle to advance across the path. However, another important component of this problem is generating motion which solves a task. For example, if our task is to animate a character’s walk from point A to point B, how do we consume existing context-less motion clips to generate a new motion which fits the context of this task?

The second half of Milestone 2 aims at producing perpetual motion and motion queuing complete with transient motion and scenic motion. The Fairmotion character will take from the path follow feature and be able to handle orders of actions to be performed in its environment.

Here is a short demo video:

Perpetual.Motion.Generator.PR.DEMO.mp4

Scenic motions and different transitive motions still in progress
This video is not in realtime, some scenes have been sped up

New Feature Overview

Users and developers can now push tasks in the form of ActionOrders to the perpetual motion generator that will be processed (FIFO), staged, and played out by our Fairmotion Character. These action orders simply consist of three components; final location, final facing direction, and a motion data object. When the character need perform a task in a location not of its current, it will gracefully nagivate to the new location and perform its task.

Users and developers can configure and fine tune transitive and scenic motions to recieve smooth simulations and mimic human behaviors to the last mannerism. The Motions class holds many tools to do this.

Users and developers can continuously queue up action orders to produce perpetual motion for the Fairmotion character. The order processing and staging happens inbetween draw events in chunks of processing to preserve the simulation speed of the character and habitat as well as react in real-time to new orders.

Lastly, a bonus feature has been added to toggle on/off a EGO4D synthetic view while the character lives in the environment. This can be activated with the 'G' key press.

EGO4D.mp4

Features and Processes

Motion Data and Types

The perpetual motion cycle uses a combination of data structures to manage the processing and completion of the tasks that are queued to it. The classes are used to abstract the intermediate data and precomputation and encapsulate processes that need not be visible to the order processor.

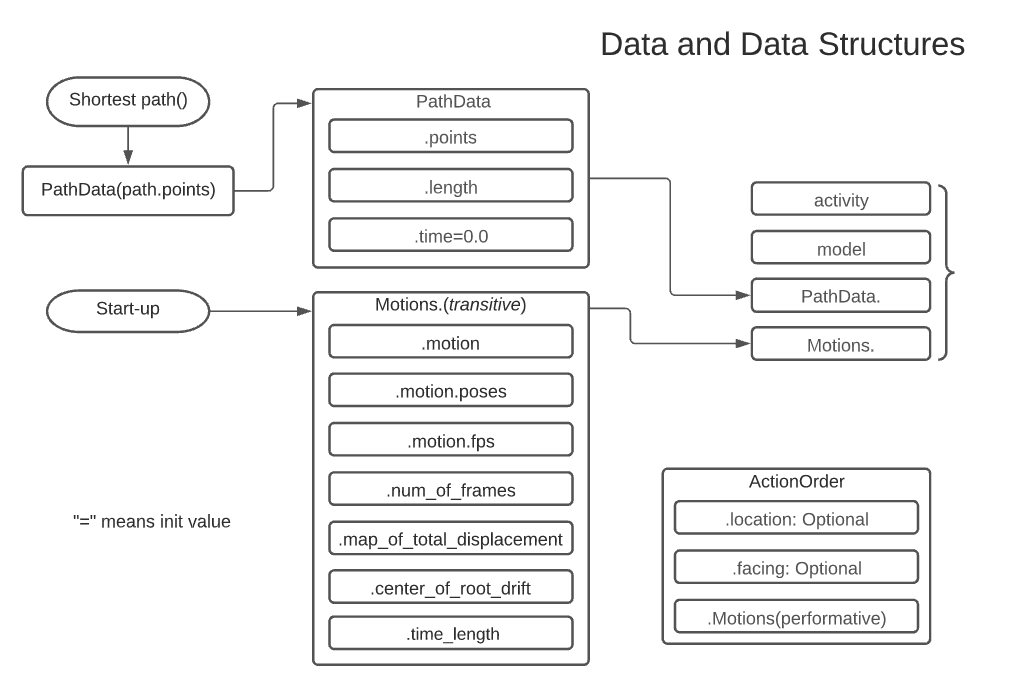

Diagram of the three main classes used to manage data

Motions Class

The Motions class is a data structure that is used to preconfigure and prepare performable motion capture data from the Fairmotion API and amass motion capture datasets. It has an inner class called MotionData that is written to initial form the two types of Fairmotion motion cycles for consumability of the action order processing. For example, developers can choose walk cycle frames, motion orientation, and handle a most of the precomputing necessary to speed up processing. The 'MotionData' class specializes in allowing the developer to construct two different MotionData types:

• Transitive: using transient motion capture like walking, running, etc., to configure usable locomotion cycles
• Scenic: using generally compatible motion data that dipicts descriptive actions like sweeping the floor or wiping a window

PathData Class

The PathData class is a data structure that is used to preconfigure and prepare performable motion capture data from the Fairmotion API and amass motion capture datasets. It has an inner class called MotionData that is written to initial form the two types of Fairmotion motion cycles for consumability of the action order processing. For example, developers can choose walk cycle frames, motion orientation, and handle a most of the precomputing necessary to speed up processing.

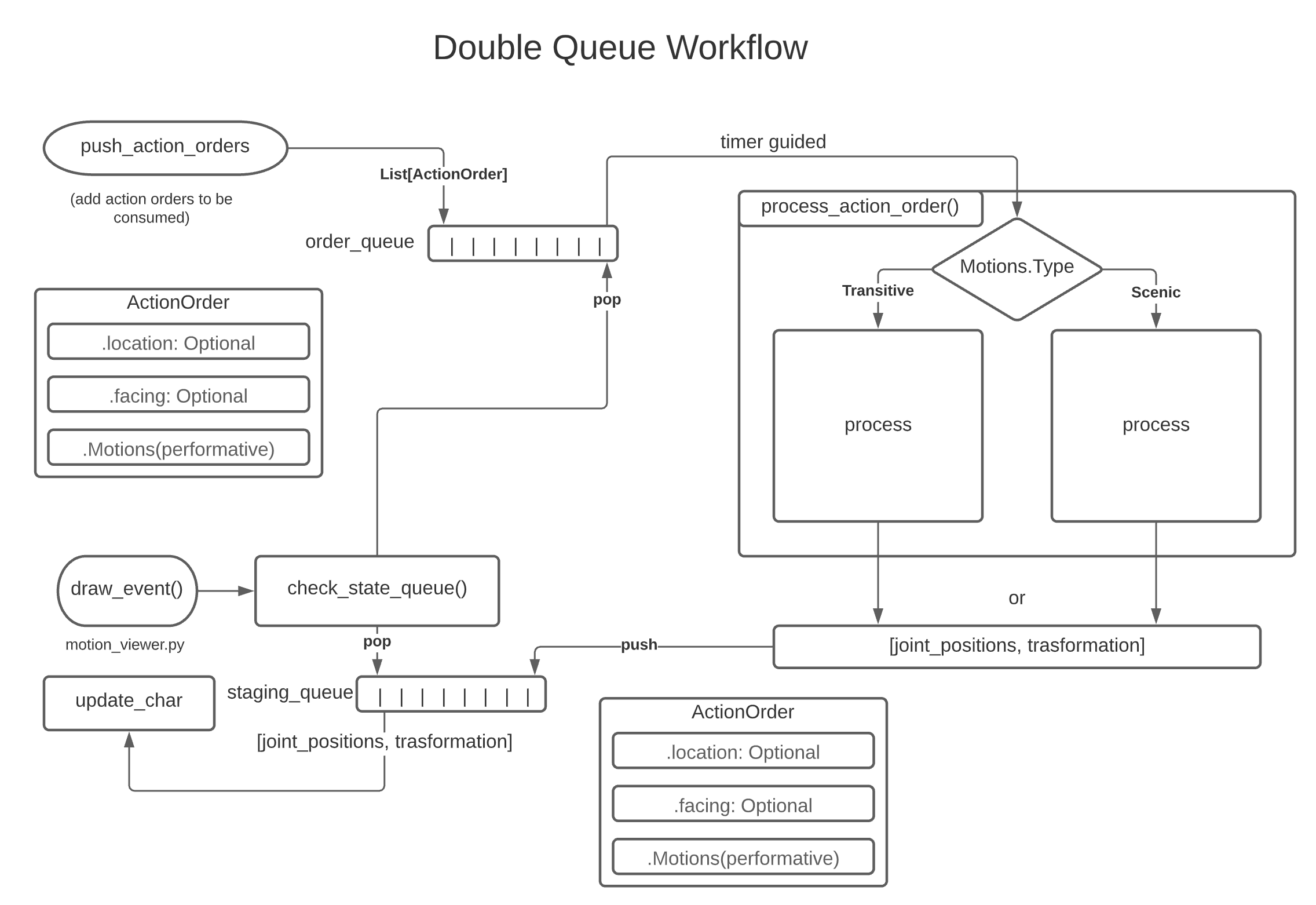

ActionOrder Class and Double Queue Workflow

The format that the FairmotionInterface takes actions from the user is through the ActionOrder class. Developers can populate action orders with the Motions Class, and optionally facing and location vectors that position and orient the motion to be performed in the environment. If the optional arguments are not given, then they take the value of previous values.

When the user pushes an ActionOrder onto the order queue, the interface used time between frame drawing events to process the action order into (joint_position, transformation) tuples that are then pushed to the staging queue. The draw_event() from the Habitat Viewer application pops these tuples off of the staging queue and positions the character for the next frame. This process is what allows for real-time action queuing and processing that does not interrupt the character simulation.

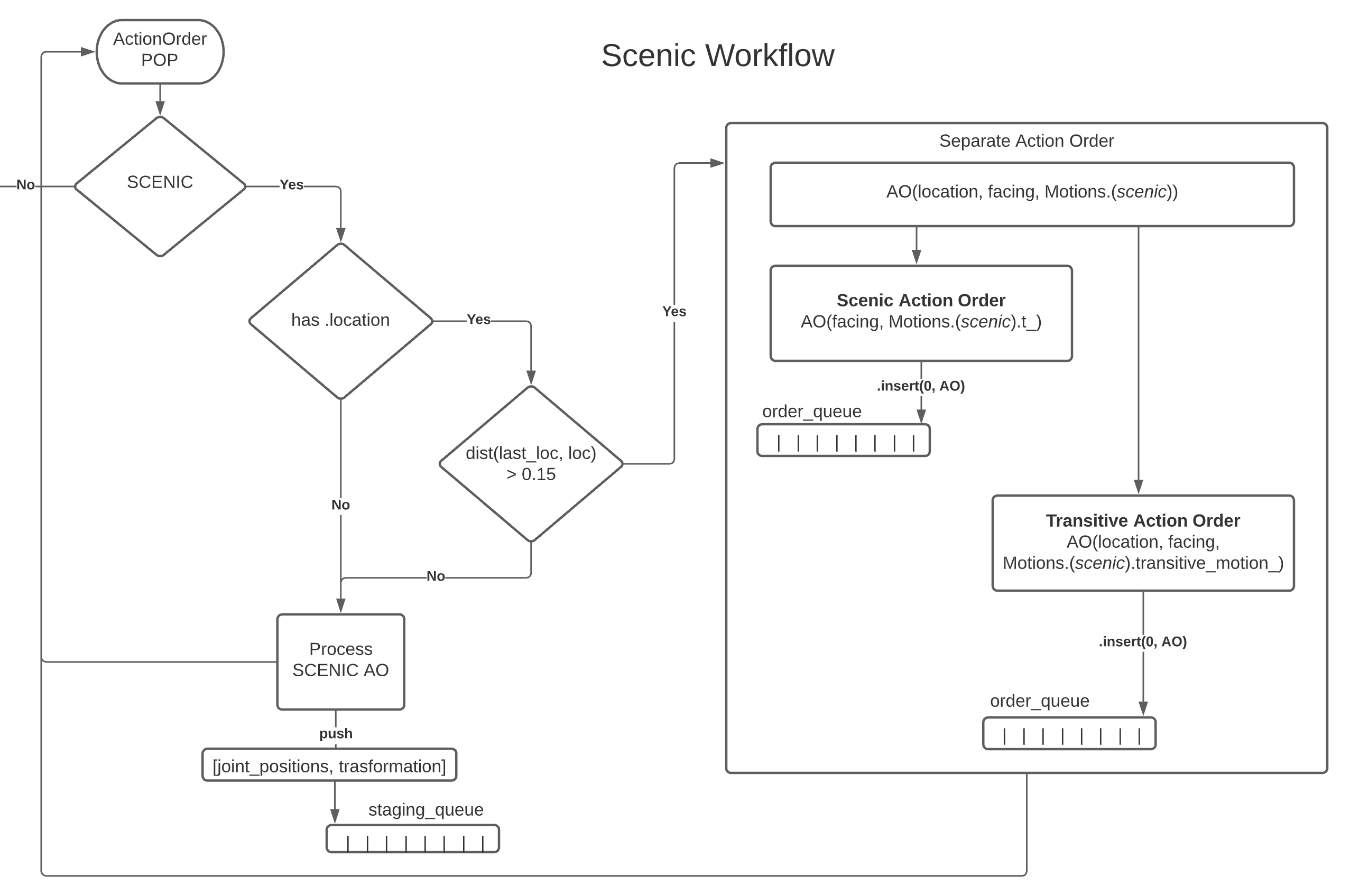

Scenic/Performative Motion Workflow

The diagram below provides a better understanding of how scenic/performative actions are handled by the processor. When given a scenic action order that must be performed somewhere different than the previous action's location, The processor simply splits the current action order into a transitive order to move the character to the new location followed by a scenic order without location. This is why each scenic order MUST HAVE an assigned transitive motion so that the processor knows what motion to build into the conjured transitive order. This can be seen in the MotionData class.

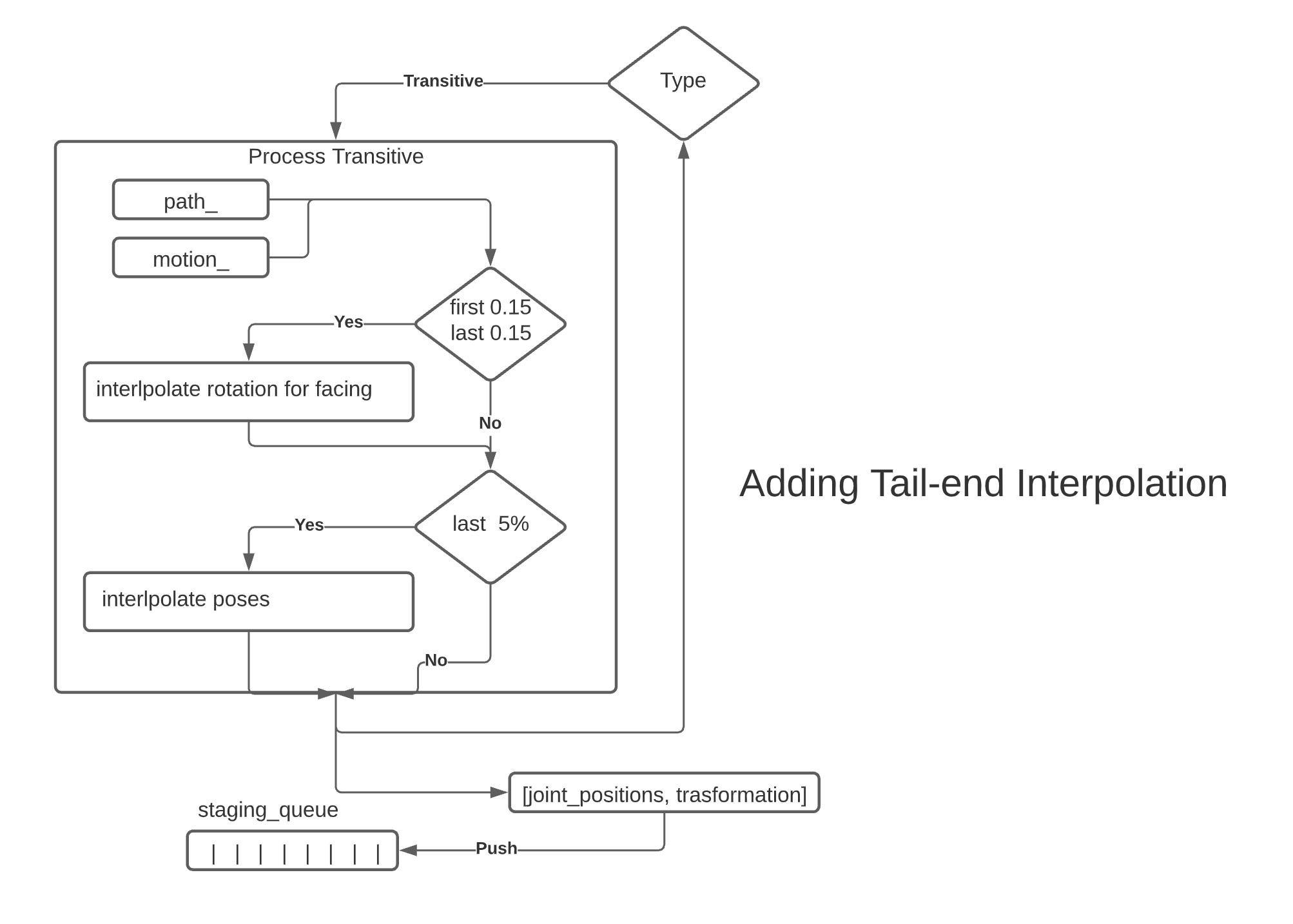

Tail-end Interpolation Between Action Orders

In order to produce the smooth transitions between Action Orders, the processor takes advantage of the first and last (user defined) margins of the character pose tuples to add interpolated adjustments to the motions. This can be seen in the diagram below.

How Has This Been Tested

This feature has been thoroughly tested with the Habitat Fairmotion Viewer Application

Types of changes

• Docs change / refactoring / dependency upgrade
• Bug fix (non-breaking change which fixes an issue)
• New feature (non-breaking change which adds functionality)
• Breaking change (fix or feature that would cause existing functionality to change)

Checklist

• My code follows the code style of this project.
• My change requires a change to the documentation.
• I have updated the documentation accordingly.
• I have read the CONTRIBUTING document.
• I have completed my CLA (see CONTRIBUTING)
• I have added tests to cover my changes.
• All new and existing tests passed.

[aclegg3]

Cool demo artifact!

Let's take a clean-up pass today. I've pointed out some things:

[aclegg3]

Looks good, let's merge it.
