Hunter Douglas Powerview - Error while setting up cover and sensor

[simurf]

The problem

The Hunter Douglas Powerview integration is showing a repeating error in the logs for setting up cover and sensor.
The integration seems to add ok from frontend and I can see the scenes as entities, but I'm getting the below error constantly in the logs for cover and sensor.

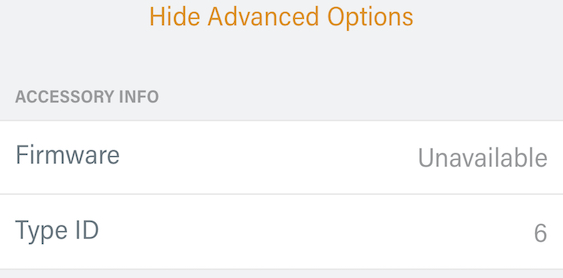

I'm using a Gen 1 Powerview Hub and in checking the Powerview app the blinds don't return a firmware version. It just to return 'Unavailable'. Which seems like it might be what's causing the error.

Environment

• Home Assistant Core release with the issue: 0.110.1
• Last working Home Assistant Core release (if known): unknown
• Operating environment (Home Assistant/Supervised/Docker/venv): Docker on Synology NAS
• Integration causing this issue: Hunter Douglas Powerview
• Link to integration documentation on our website: https://www.home-assistant.io/integrations/hunterdouglas_powerview/

Problem-relevant configuration.yaml

Traceback/Error logs

2020-05-23 12:51:29 ERROR (MainThread) [homeassistant.components.sensor] Error while setting up hunterdouglas_powerview platform for sensor
Traceback (most recent call last):
  File "/usr/src/homeassistant/homeassistant/helpers/entity_platform.py", line 186, in _async_setup_platform
    await asyncio.gather(*pending)
  File "/usr/src/homeassistant/homeassistant/helpers/entity_platform.py", line 295, in async_add_entities
    await asyncio.gather(*tasks)
  File "/usr/src/homeassistant/homeassistant/helpers/entity_platform.py", line 344, in _async_add_entity
    device_info = entity.device_info
  File "/usr/src/homeassistant/homeassistant/components/hunterdouglas_powerview/entity.py", line 77, in device_info
    firmware = self._shade.raw_data[FIRMWARE_IN_SHADE]
KeyError: 'firmware'

2020-05-23 12:51:39 ERROR (MainThread) [homeassistant.components.cover] Error while setting up hunterdouglas_powerview platform for cover
Traceback (most recent call last):
  File "/usr/src/homeassistant/homeassistant/helpers/entity_platform.py", line 186, in _async_setup_platform
    await asyncio.gather(*pending)
  File "/usr/src/homeassistant/homeassistant/helpers/entity_platform.py", line 295, in async_add_entities
    await asyncio.gather(*tasks)
  File "/usr/src/homeassistant/homeassistant/helpers/entity_platform.py", line 344, in _async_add_entity
    device_info = entity.device_info
  File "/usr/src/homeassistant/homeassistant/components/hunterdouglas_powerview/entity.py", line 77, in device_info
    firmware = self._shade.raw_data[FIRMWARE_IN_SHADE]
KeyError: 'firmware'

Additional information

[probot-home-assistant]

hunterdouglas_powerview documentation
hunterdouglas_powerview source
_{^{(message by IssueLinks)}}

[bdraco]

@GooeyLizard9000 Thanks for opening a new issue.

Would you please run
pip3 install --upgrade aiopvapi

And then save the following python code as shades.py and run it

import pprint
import asyncio
import aiohttp

from aiopvapi.helpers.aiorequest import AioRequest
from aiopvapi.shades import Shades


async def main():
    websession = aiohttp.ClientSession()
    pv_request = AioRequest("192.168.210.72", websession=websession)
    shades = Shades(pv_request)
    resources = await shades.get_resources()
    pprint.pprint(["Hub Shades", resources])
    await websession.close()


if __name__ == "__main__":
    loop = asyncio.get_event_loop()
    loop.run_until_complete(main())

Please paste the result here. It should look like this:

# python3 shades.py
['Hub Shades',
 {'shadeData': [{'batteryStatus': 3,
                 'batteryStrength': 184,
                 'capabilities': 0,
                 'firmware': {'build': 1944, 'revision': 1, 'subRevision': 8},
                 'groupId': 53922,
                 'id': 17035,
                 'motor': {'build': 152, 'revision': 0, 'subRevision': 0},
                 'name': 'TWFzdGVyIEJhdGggU2t5bGlnaHQ=',
                 'name_unicode': 'Master Bath Skylight',
                 'positions': {'posKind1': 1, 'position1': 0},
                 'roomId': 56472,
                 'signalStrength': 4,
                 'type': 10},
                {'batteryStatus': 3,
                 'batteryStrength': 187,
                 'capabilities': 0,
                 'firmware': {'build': 1944, 'revision': 1, 'subRevision': 8},
                 'groupId': 57174,
                 'id': 37518,
                 'motor': {'build': 152, 'revision': 0, 'subRevision': 0},
                 'name': 'TWFzdGVyIEJlZCBTa3lsaWdodA==',
                 'name_unicode': 'Master Bed Skylight',
                 'positions': {'posKind1': 1, 'position1': 0},
                 'roomId': 14095,
                 'signalStrength': 4,
                 'type': 10}],
  'shadeIds': [17035, 37518]}]

[simurf]

Here's the output from shades.py
Looks like there's a bit of difference between my V1 shades and what the integration is expecting.

['Hub Shades',
 {'shadeData': [{'batteryStatus': 3,
                 'batteryStrength': 168,
                 'groupId': 41204,
                 'id': 39696,
                 'name': 'QzM=',
                 'name_unicode': 'C3',
                 'order': 0,
                 'positions': {'posKind1': 1, 'position1': 0},
                 'roomId': 27780,
                 'type': 6},
                {'batteryStatus': 3,
                 'batteryStrength': 155,
                 'groupId': 8008,
                 'id': 10331,
                 'name': 'S2l0Y2hlbiA=',
                 'name_unicode': 'Kitchen ',
                 'order': 1,
                 'positions': {'posKind1': 1, 'position1': 65535},
                 'roomId': 1683,
                 'type': 6},
                {'batteryStatus': 3,
                 'batteryStrength': 161,
                 'groupId': 41204,
                 'id': 61024,
                 'name': 'QzE=',
                 'name_unicode': 'C1',
                 'order': 2,
                 'positions': {'posKind1': 1, 'position1': 0},
                 'roomId': 27780,
                 'type': 6},
                {'batteryStatus': 0,
                 'batteryStrength': 0,
                 'groupId': 53808,
                 'id': 41235,
                 'name': 'SGFtaXNo',
                 'name_unicode': 'Hamish',
                 'order': 3,
                 'roomId': 43542,
                 'type': 6},
                {'batteryStatus': 3,
                 'batteryStrength': 156,
                 'groupId': 38786,
                 'id': 11780,
                 'name': 'S2VsYW4=',
                 'name_unicode': 'Kelan',
                 'order': 4,
                 'positions': {'posKind1': 1, 'position1': 65535},
                 'roomId': 4829,
                 'type': 6},
                {'batteryStatus': 0,
                 'batteryStrength': 0,
                 'groupId': 20659,
                 'id': 56048,
                 'name': 'U3R1ZHkgQmxpbmQ=',
                 'name_unicode': 'Study Blind',
                 'order': 5,
                 'positions': {'posKind1': 1, 'position1': 65535},
                 'roomId': 50662,
                 'type': 6},
                {'batteryStatus': 3,
                 'batteryStrength': 169,
                 'groupId': 41204,
                 'id': 51820,
                 'name': 'V2VzdA==',
                 'name_unicode': 'West',
                 'order': 6,
                 'positions': {'posKind1': 1, 'position1': 51},
                 'roomId': 27780,
                 'type': 6},
                {'batteryStatus': 3,
                 'batteryStrength': 182,
                 'id': 11371,
                 'name': 'QmxpbmQgMTE=',
                 'name_unicode': 'Blind 11',
                 'order': 7,
                 'positions': {'posKind1': 1, 'position1': 0},
                 'type': 6},
                {'batteryStatus': 3,
                 'batteryStrength': 139,
                 'id': 15510,
                 'name': 'QmxpbmQgMTA=',
                 'name_unicode': 'Blind 10',
                 'order': 8,
                 'positions': {'posKind1': 1, 'position1': 125},
                 'type': 6}],
  'shadeIds': [39696, 10331, 61024, 41235, 11780, 56048, 51820, 11371, 15510]}]
