Creating PW Sat2 downlink transmitter mock

Piotr Kuligowski edited this page Sep 7, 2018 · 4 revisions

You can use I/Q recordings of PW-Sat2 downlink signal and tx-capable SDR to create mock of our satellite.

Mock with Pluto SDR

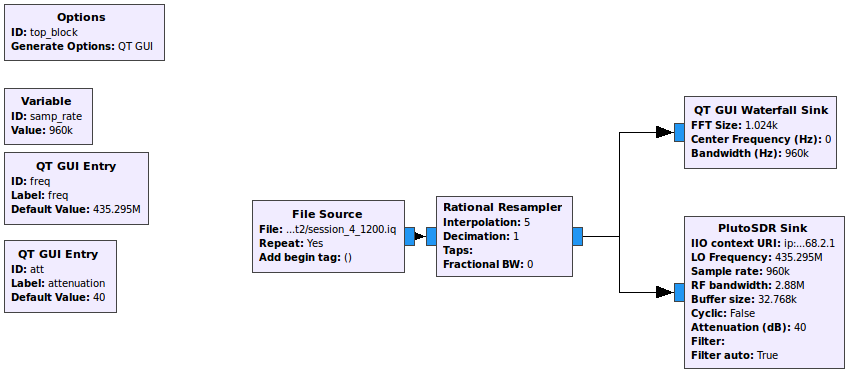

We've prepared GNU Radio Companion flow graph for PlutoSDR. GRC project file you can find in our repository.


Connect Pluto SDR, launch GRC project, set path in File Source block and run it. Done! Now your ground station should receive PW-Sat2's beacon messages with telemetry.
