Current symbol rate
Default symbol rate of the PW-Sat2 is 1200 Bd, however the PW-Sat2 Operation Team can set on-demand (by a telecommand) one of the following symbol rates:
- 1200 Bd (default)
- 2400 Bd
- 4800 Bd
- 9600 Bd
It's necessary to choose proper symbol rate in Demodulator. There are several ways to figure out current symbol rate as described below.
Our team will post a twitt each time we'll change symbol rate - follow our profile @PW-Sat2. However, the satellite performs daily power-cycle (every 23 h) and sets its symbol rate to default one, i.e. 1200 Bd.

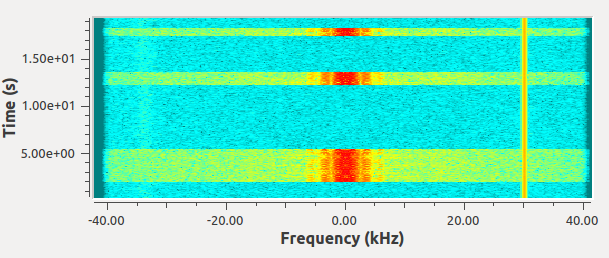

- 1200 Bd

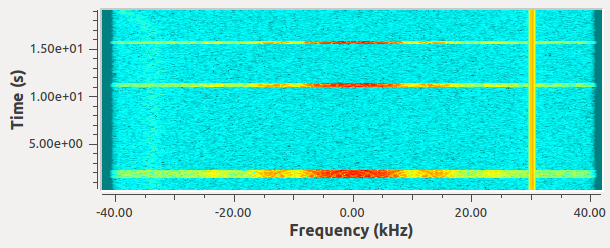

- 2400 Bd

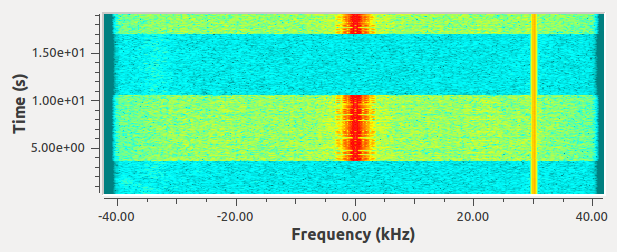

- 4800 Bd

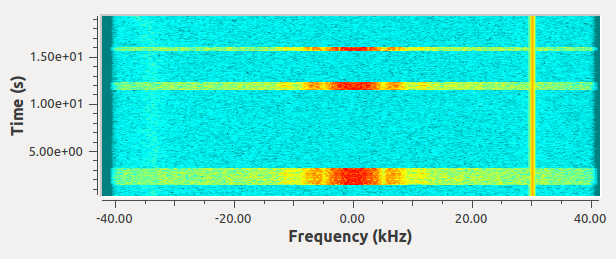

- 9600 Bd
