[FancyZones Editor] New UX for the FZ editor. by SeraphimaZykova · Pull Request #9325 · microsoft/PowerToys

SeraphimaZykova · 2021-01-27T13:22:52Z

Summary of the Pull Request

This PR introduces a brand new UX for the FZ editor created by @niels9001

New features:

Ability to duplicate layouts
New UX that simplifies the creation and selection of (new) layouts.
Theming support (dark/light and all high contrast themes).
UI can now be fully controlled with tab/arrow keys
Monitor selection now supports keyboard (for selection)
Accessibility improvements.
Other minor enhancements (e.g. scrollable list).

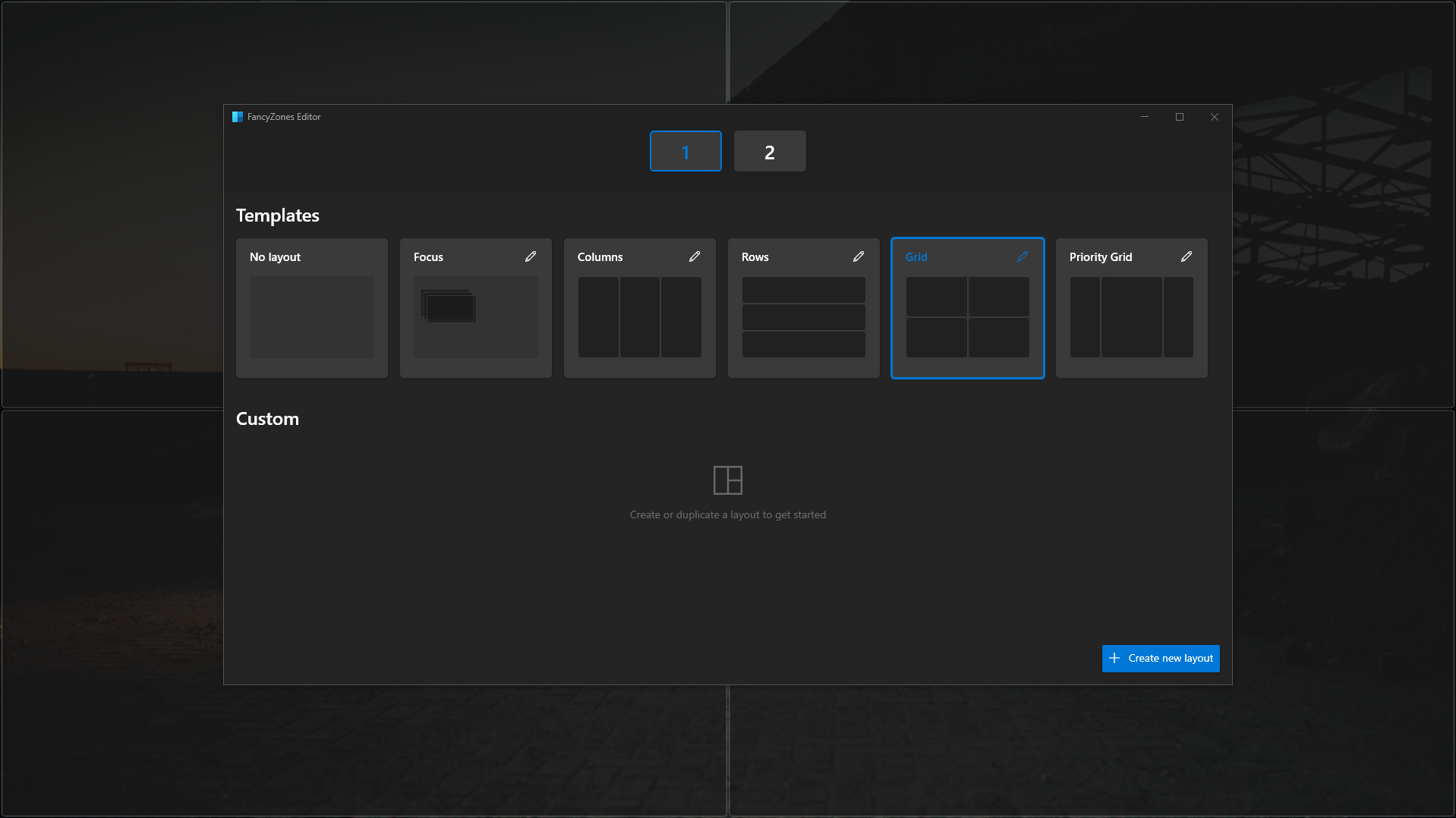

Editor

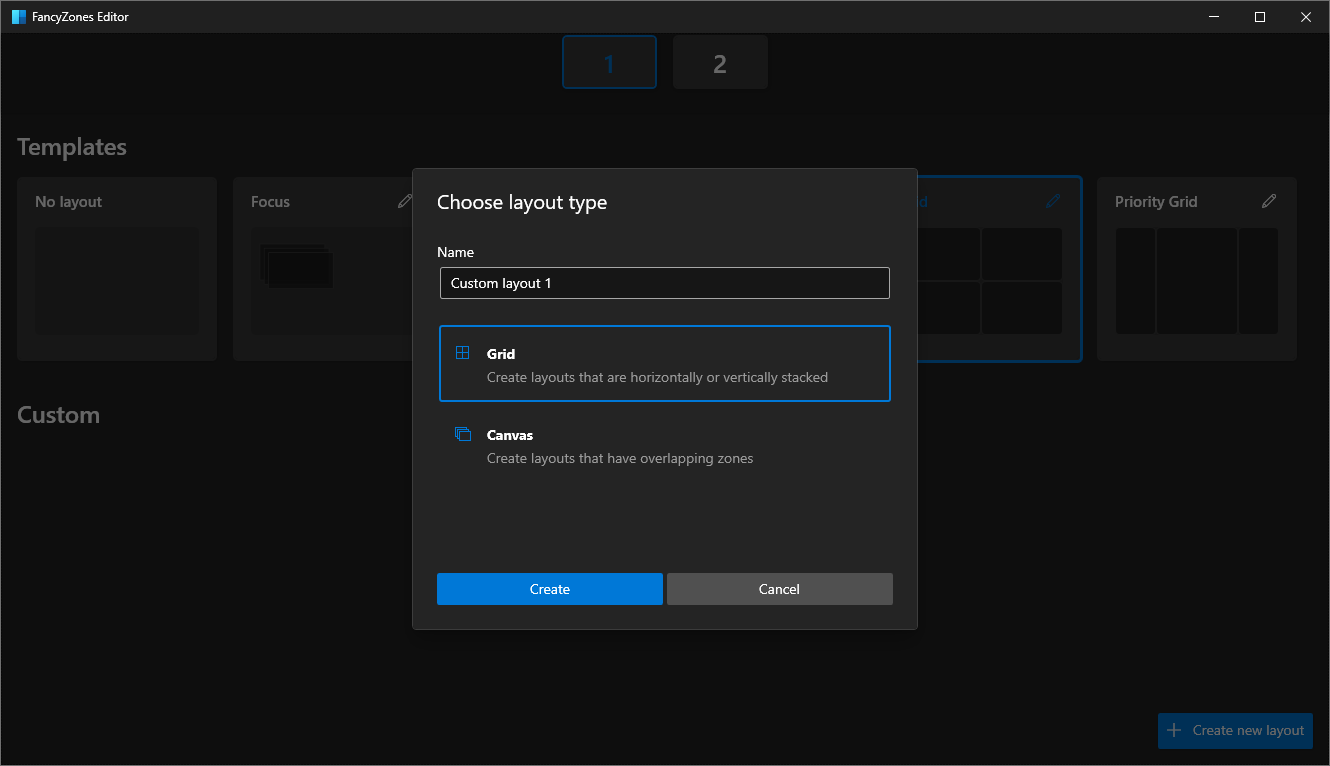

New layout dialog

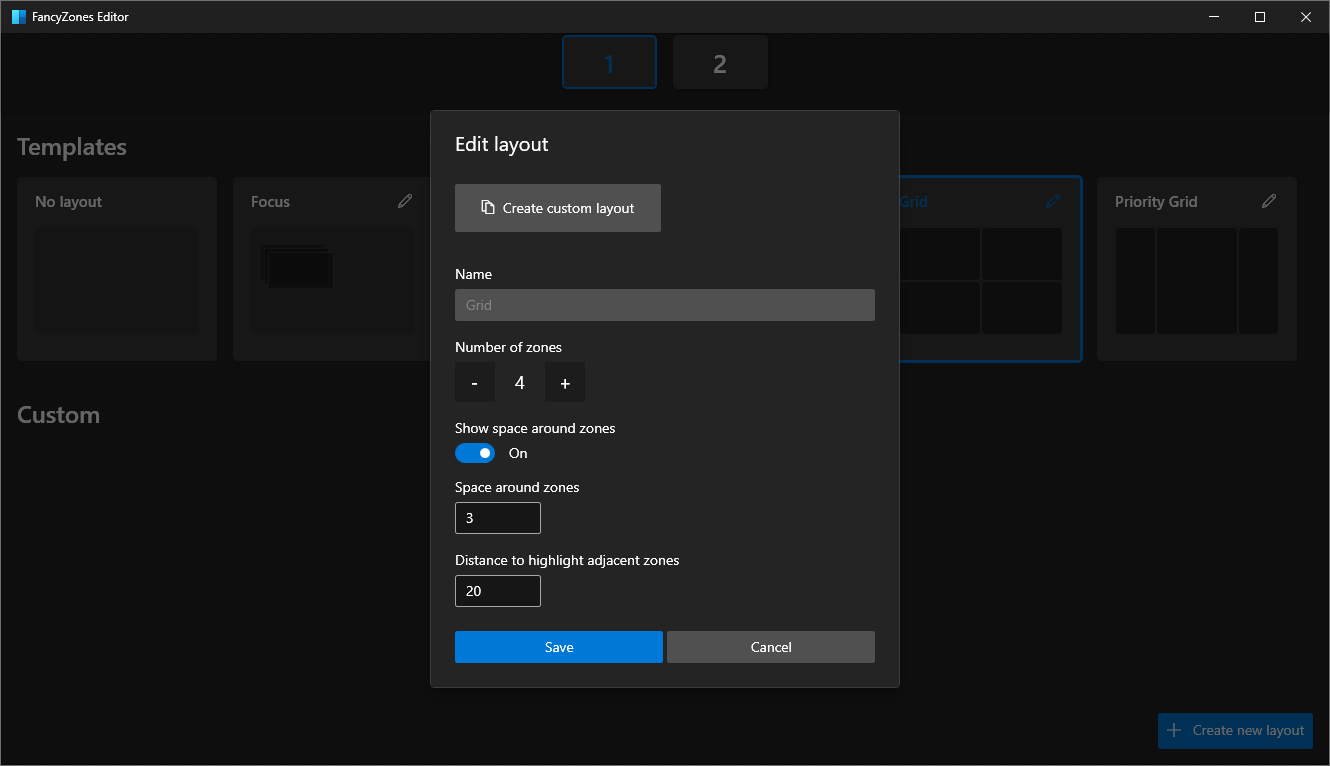

Edit template layout

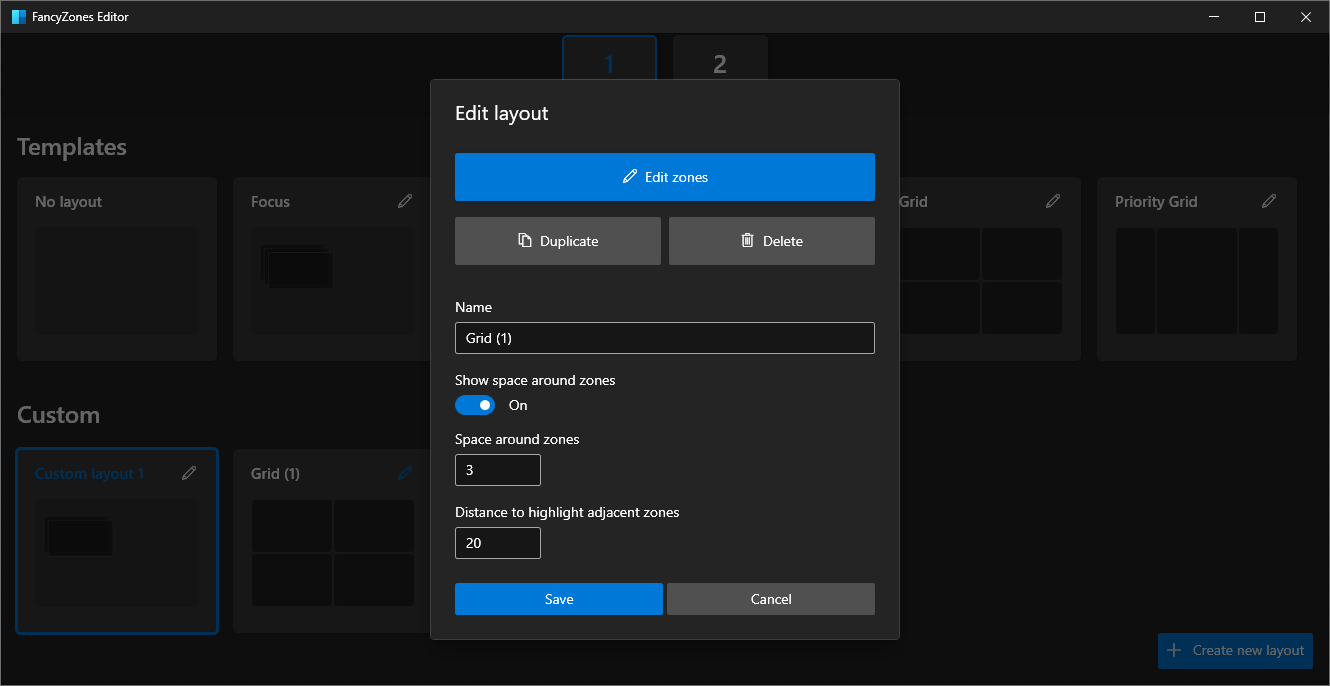

Edit custom layout

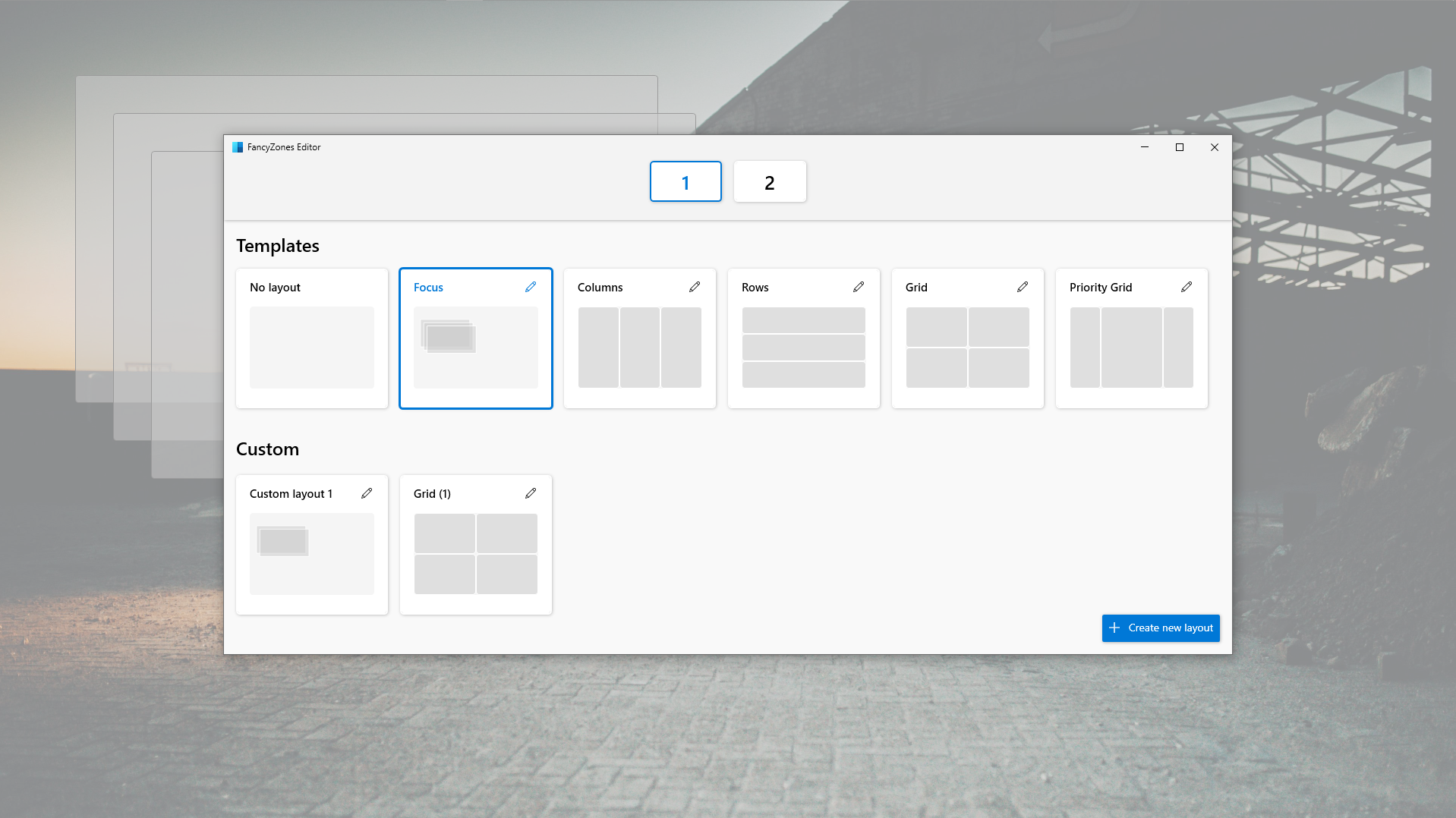

Light theme

Quality Checklist

Contributor License Agreement (CLA)

A CLA must be signed. If not, go over here and sign the CLA.

enricogior · 2021-01-27T14:11:14Z

-    /// </summary>
    public partial class CanvasEditorWindow : EditorWindow
    {
+        private int _offset = 100;


Can you add a comment to explain what is this offset referring to?

enricogior · 2021-01-27T14:20:47Z

@niels9001 @SeraphimaZ
you did an amazing work!!! 🥇

htcfreek · 2021-01-27T14:38:00Z

I agree with @enricogior. Thank you for this nice UI.

yuyoyuppe · 2021-01-27T14:42:17Z

+            Model.PropertyChanged += OnGridDimensionsChanged;
+
+            int zoneCount = _data.ZoneCount;
+            for (int i = 0; i <= zoneCount; i++)


shouldn't we do i < zoneCount instead?

Yes, but with a little fix in GridData. In fact, ZoneCount represents the biggest used index in the grid, so the name is misleading. I'll update the code so that it would represent exactly what it means.

htcfreek · 2021-01-27T14:45:12Z

@enricogior
Can we do layout based review too or do we only review the functional things to merge it for 0.31?

mykhailopylyp · 2021-01-27T15:26:25Z

        public App()
        {
-            DebugModeCheck();
+            // DebugModeCheck();


Why is it commented out? Should we remove it?

We still want to enable debug mode for stand alone debugging, we can revisit this in 0.33 or 0.35.

mykhailopylyp · 2021-01-27T15:54:20Z

+                }
+            }
+
+            _zoneCount = maxIndex + 1;


Before ZoneCount was equal to maxIndex not it is equal to maxIndex+1. Does it mean that indexing changed?

No, indexing wasn't changed. I explained above the reason for it, ZoneCount was a misleading name.

mykhailopylyp · 2021-01-27T16:09:31Z

 // The Microsoft Corporation licenses this file to you under the MIT license.
 // See the LICENSE file in the project root for more information.

+using System;


nit: redundant using directive

Jay-o-Way · 2021-01-27T17:17:17Z

Looking good! 😁

May I make a few suggestions?
@ Editor: top part - I see you left away the resolution of the monitors. Is that for a specific reason? I believe that people like to see it.
@ New layout dialog - Top title mentions "type", but immediately below that there is an input for the name. Maybe "New layout" for the title and "Name" and "Type" labels would be a bit better? Are there any forbidden characters for the name? (to prevent the settings file from malfunctioning)
@ Edit (template) layout - A NumberBox for "Number of zones" and "Show space" and "Distance to highlight" would be better. I would mention "px" with the last two. Also we could combine the controls for Show space around zones?

niels9001 · 2021-01-27T17:38:54Z

Looking good! 😁
May I make a few suggestions?
@ Editor: top part - I see you left away the resolution of the monitors. Is that for a specific reason? I believe I've seen that people like to see it.

This has been moved into a tooltip, so hovering over / on focus would show the tooltip. Let's look at the feedback to see if it needs to be visible at all times.

@ New layout dialog - Top title mentions "type", but immediately below that there is an input for the name. Maybe "New layout" for the title and "Name" and "Type" labels would be a bit better?

Agree. I think the dialog title should just be "Create new layout".

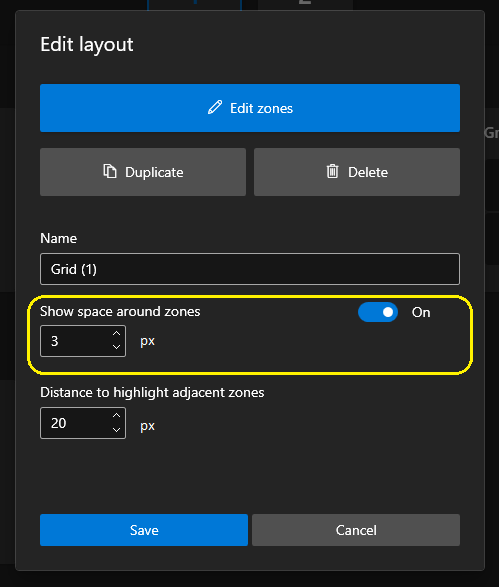

@ Edit (template) layout - Maybe a NumberBox for "Number of zones" and "Show space" and "Distance to highlight" would be better. I would mention "px" with the last two aswel. Also we could combine the controls for Show space around zones?

The edit dialog probably needs some (minor) moving around of controls. Could you open an issue for that so it's track-able :)?

Jay-o-Way · 2021-01-27T17:54:57Z

        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d"
-        Title="Window1" Height="450" Width="800"
+        Title="Window1" Height="450"


crutkas · 2021-01-27T18:08:25Z

@enricogior, the installer build got stuck on a heart beat, i'm good to go if you are. I kicked off another one but it is only 1 minute into the actual compile.
